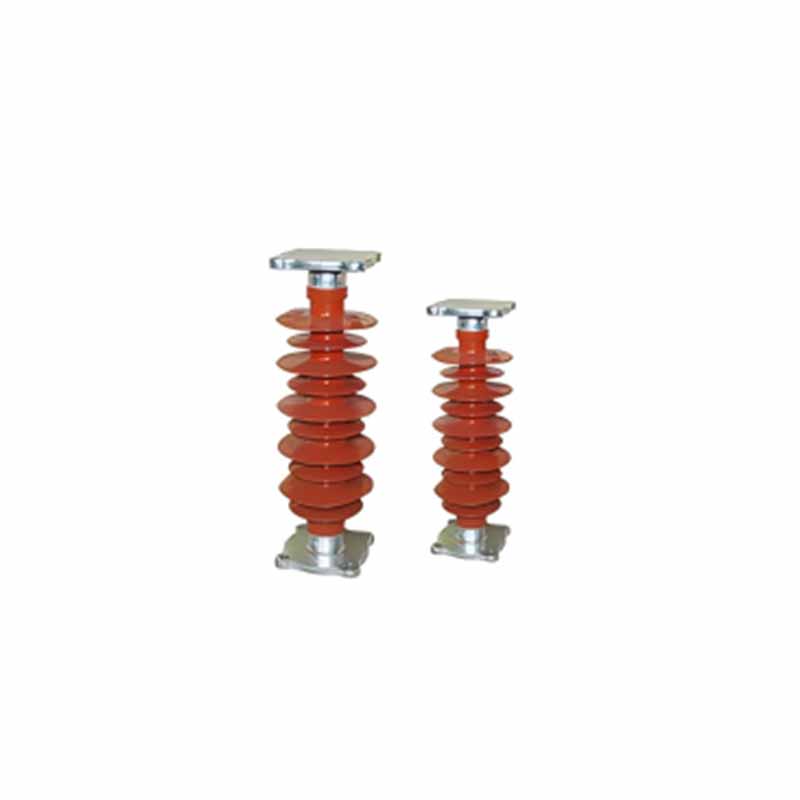

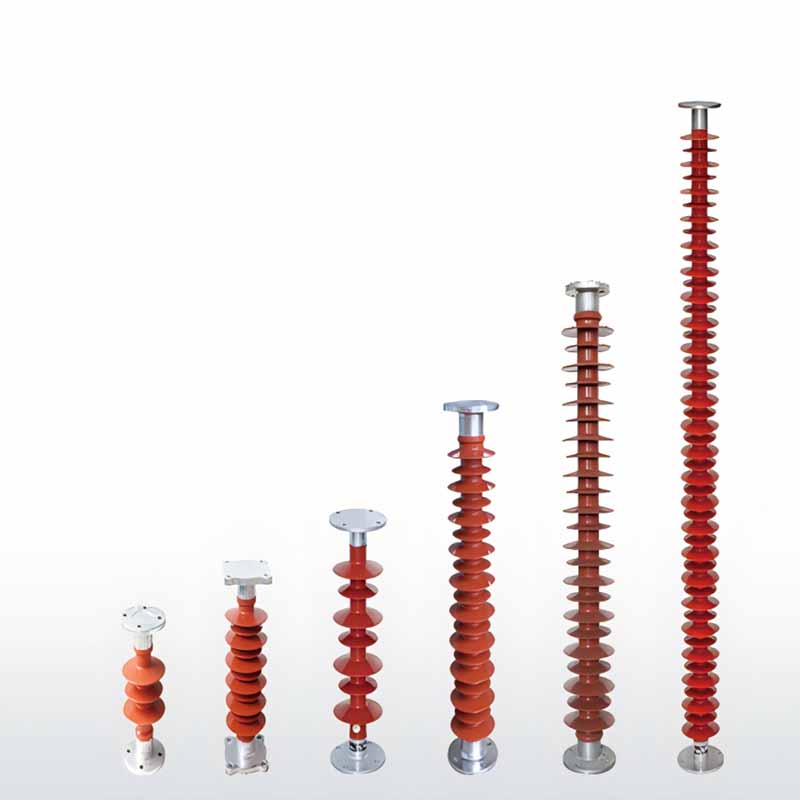

Product Overview:
This product is applied to high voltage power line service, And have features of good hydrophobicity , anti-aging, anti-leakage trace and electrical erode proof, tensile strength and bending strength, strong mechanical strength, with good performance in shock resistance good quakeproof & brittle-break proof, light weight, easy to installation, and the installation outline of top and base are the same size with porcelain pin type, they can exchange to use each other.
Specifications and Parameters:
Main Technical Parameters (Performance meet the GB/T20142-2006、IEC61952)
| Product Model |
Rated voltage (kV) |
Rated mechanical load(kN) |
Rated catileve load (kN.mm) |
structure height H (mm) |
Minimum Arcdistance Li.(mm) |
Min.creepage distance Lc.(mm) |
Diameter of shed D.(mm) |
Lightning impulse withstand voltage (peak)(kV) |
P.F.1min wet withstand voltage(Virtual value)(kV) | Top accessories install dimension(hole numbers n-hole dameter d-crter hole dameter D) | Bottom accessories install dimension(hole numbers n-hole dameter d-crter hole dameter D) |
| FZSW-10/5 | 10 | 5 | 0.6 | 215 | 125 | 290 | 100/90 | 75 | 42 | 4-M12-θ76 | 4-M12-θ76 |
| FZSW-15/5 | 15 | 5 | 0.6 | 170 | 170 | 600 | 138/118 | 105 | 45 | 4-M12-θ76 | 4-M12-θ76 |
| FZSW-20/8 | 20 | 8 | 1.2 | 300 | 300 | 920 | 122/92 | 125 | 50 | 4-θ14-θ140 | 4-θ14-θ140 |
| FZS-20/8 | 20 | 8 | 1.2 | 320 | 320 | 700 | 138 | 125 | 50 | 4-θ14-θ140 | 4-θ14-θ140 |
| FZSW-35/6 | 35 | 6 | 2 | 360 | 360 | 900 | 148/118 | 185 | 95 | 4-θ14-θ140 | 4-θ14-θ140 |
| FZSW-66/8 | 66 | 8 | 1.5 | 650 | 650 | 1930 | 160/130 | 325 | 140 | 4-θ14-θ140 | 4-θ14-θ140 |
| FZSW-66/12 | 66 | 12 | 2 | 630 | 630 | 1940 | 215/185 | 325 | 140 | 4-θ14-θ140 | 4-θ14-θ140 |
| FZSW-110/6 | 110 | 6 | 1.5 | 1050 | 1050 | 2950 | 160/130 | 325 | 200 | 4-θ14-θ140 | 4-θ14-θ140 |
| FZSW-110/10 | 110 | 10 | 4 | 1060 | 1060 | 3260 | 215/185 | 450 | 200 | 4-θ14-θ140 | 4-θ18-θ180 |
| FZSW-220/11 | 220 | 10 | 4 | 2050 | 2050 | 6520 | 215/185 | 950 | 395 | 4-θ14-θ140 | 4-θ18-θ225 |
|
Note: 1.The mini creepage distance is a little different as per product height. 2. The product height and top, boltom accessories install dilmension could be choosed from table, also could be supplied their dates to us by yourself.The 220 kVinsulator could be one section, and also two sections. 3. 110Kv-220kV composite core post insulator only could be applied to busbar post or laleral post.It should be discussed with manufacturer if the products are used for knife switch post. |
|||||||||||
We offer the most advanced engineering design solutions and product technology solutions to global power customers, and continue to create value for the commercial success of global power customers.
