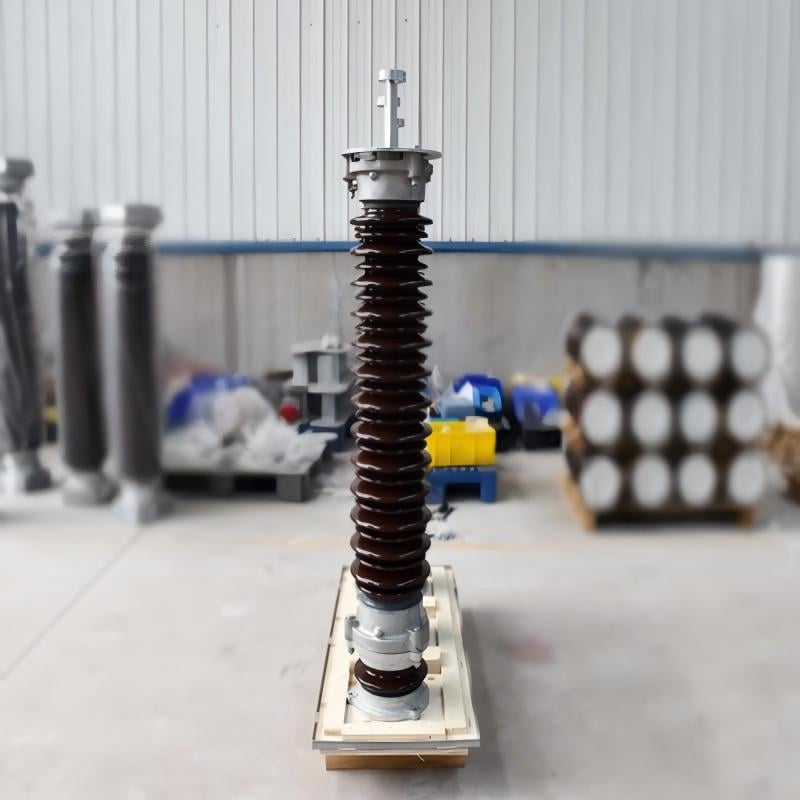

Produktmodeltype: Y5W-84/221, Y5W-90/235, Y5W-96/232
Nominelt spænding Ur(kVr.m.s): 84, 90, 96
Kontinuert driftsspænding Uc(kVr.m.s): 67.2, 72.5, 75
DC reference spænding U1mA(kV):121, 130, 137
| Nominelt systemspænding Un | Produktmodeltype | Nominel spænding Ur | Kontinuert driftsspænding Uc | DC reference spænding U1mA | Strømfrekvens reference spænding Uref | Residualtryk ikke større end kVp | 2ms kvadratbølgestrøm A | Total højde A | Antal enheder | Krybeafstand pr. kV | Total masse | ||
| kVr.m.s | kVr.m.s | kVr.m.s | kV | kVr.m.s | 30 / 60 μs | 8 / 20 μs | 1 μs brat bølge | (mm) | (mm / kv) | (kg) | |||
| 66 | y5w-84 /221 | 84 | 67.2 | 121 | 84 | 188 | 221 | 248 | 600,800 | 1550 / 1295 | 1 | 31 | 180 / 130 |
| y5w-90 / 235 | 90 | 72.5 | 130 | 90 | 201 | 235 | 270 | 600,800 | |||||
| y5w-96 / 232 | 96 | 75 | 137 | 96 | 198 | 232 | 267 | 600,800 | |||||
