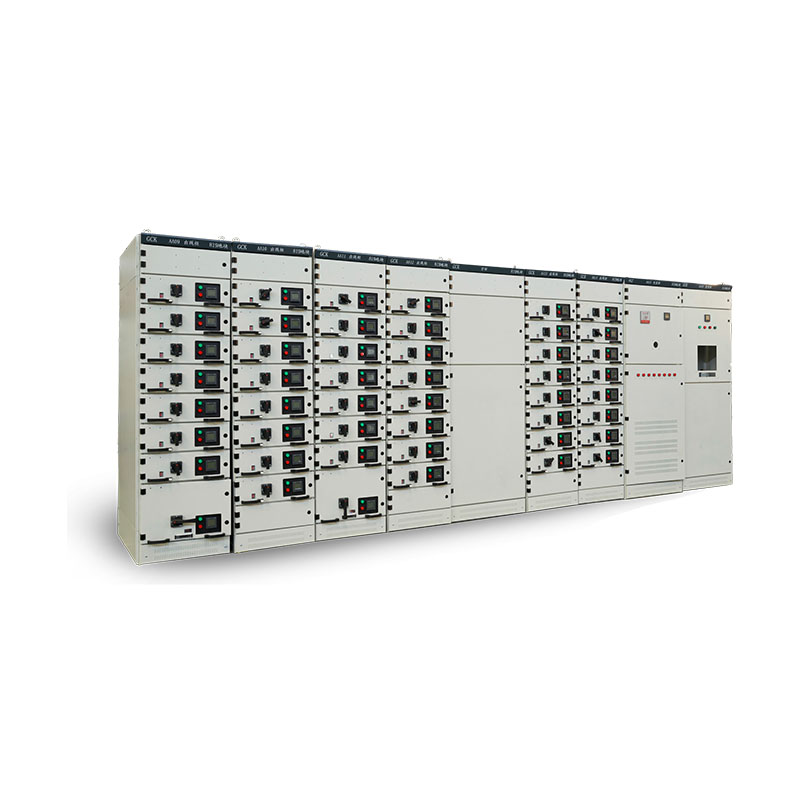

Product Overview: GCK type withdrawable low-voltage switchgear
Complying with the requirements of GB7251.1JB/T9661IEC439-1 and other standards, it is suitable for power systems with rated voltage 380 ~ 660V, AC three-phase 50 ~ 60Hz. It is used for power distribution, motor control and reactive power compensation. It can be used according to different needs. Designed as a hybrid drawer and stationary system.
Specifications and Parameters:
Rated voltage of the main circuit:AC380
Horizontal bus current rating:≤4000A
material:Cold rolled steel plate/aluminum zinc coated plate
Dimensions (W*D*H):600(800,1000,1200）*1000(600,800）*2200mm
Rated insulation voltage:660V
Rated frequency:50Hz
The rated current of the distribution bus:600~1000A
The bus bar is rated for short-time withstand current:50,80kA
We offer the most advanced engineering design solutions and product technology solutions to global power customers, and continue to create value for the commercial success of global power customers.
