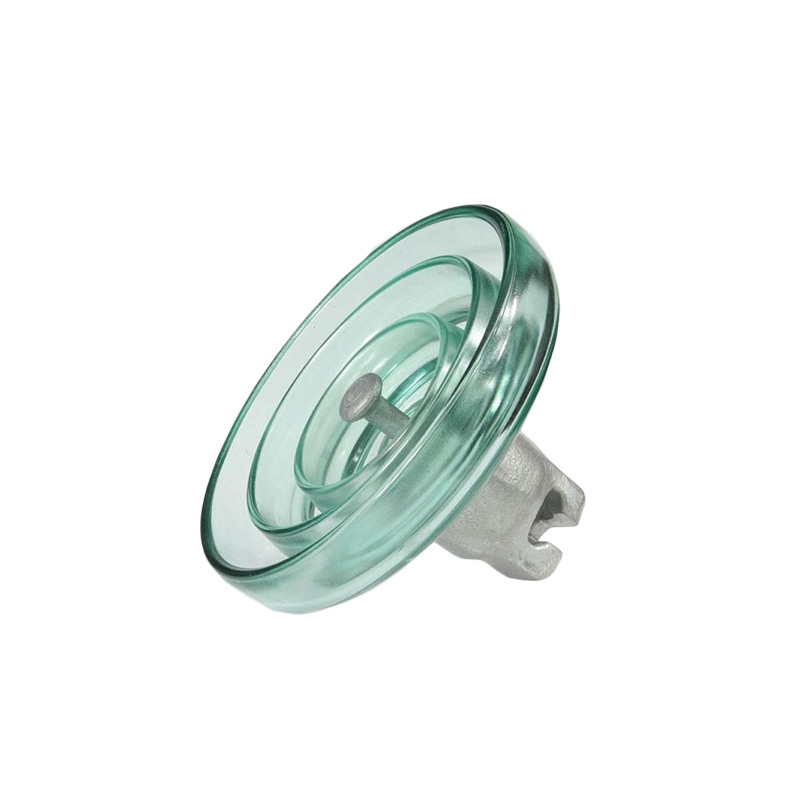

Penamaan semasa/umum/lec: u70bp/146h, u70bp/146h, u70bp/146h
diameter d ((mm): 255, 280, 320
jarak h ((mm): 146, 146, 146
pergeseran l ((mm): 400, 450, 550
Pengikat soket (mm): 16, 16, 16
beban kegagalan mekanikal (kn): 70, 70, 70
ujian rutin mekanikal (kn):35, 35, 35
| Penamaan semasa/umum/lek | u70bp/146h | u70bp/146h | u70bp/146h |
| diameter d (mm) | 255 | 280 | 320 |
| Jarak h (mm) | 146 | 146 | 146 |
| Pergerakan l (mm) | 400 | 450 | 550 |
| Pengikat soket (mm) | 16 | 16 | 16 |
| beban kegagalan mekanikal (kn) | 70 | 70 | 70 |
| Ujian rutin mekanikal (kn) | 35 | 35 | 35 |
| frekuensi kuasa basah tahan voltan (kv) | 45 | 50 | 55 |
| Impulsi kilat kering tahan voltan (kv) | 110 | 125 | 140 |
| Voltan pukulan impuls (p.u) | 2.8 | 2.8 | 2.8 |
| frekuensi kuasa voltan tusukan (kv) | 130 | 130 | 130 |
| voltan pengaruh rodio (μv) | 50 | 50 | 50 |
| Ujian visual corona (kv) | 18/22 | 18/22 | 18/22 |
| frekuensi kuasa voltan busur elektrik | 0.12s/20ka | 0.12s/20ka | 0.12s/20ka |
| Berat bersih setiap unit (kg) | 4.6 | 5.8 | 9.2 |
We offer the most advanced engineering design solutions and product technology solutions to global power customers, and continue to create value for the commercial success of global power customers.
