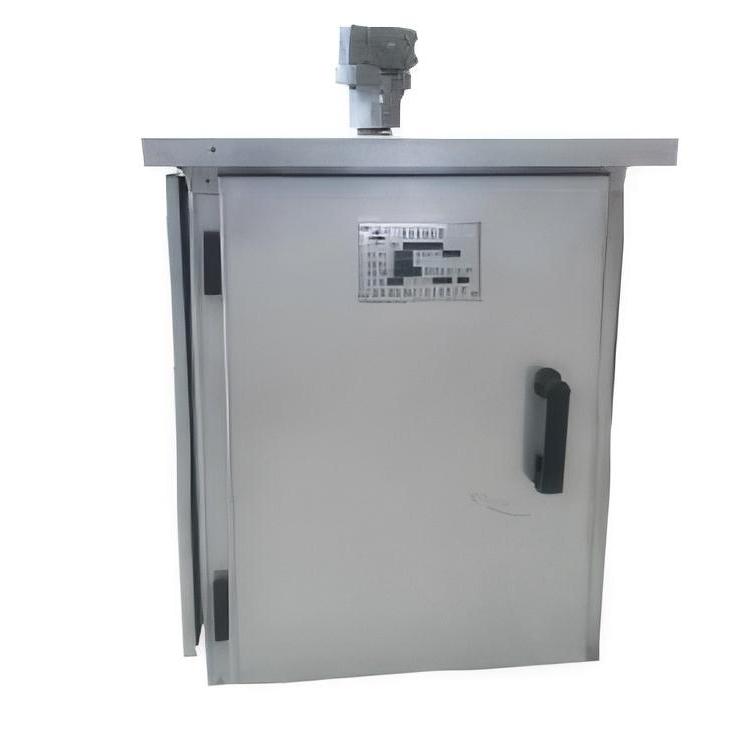

Product Overview: Outdoor Disconnect Switch Electromotor Operation Mechanism
CJ2, SRCJ2-3, SRCJ7, SRCJ8 , SRCJ10 type electromotor operation mechanism are outdoor product used in operation high voltagedisconnect switch and earthing switch, which can conduct remote control, or locally motor-driven operation or manual operation by handle.Fastener is in- stalled between manual and motor-driven operation to guarantee the safety.

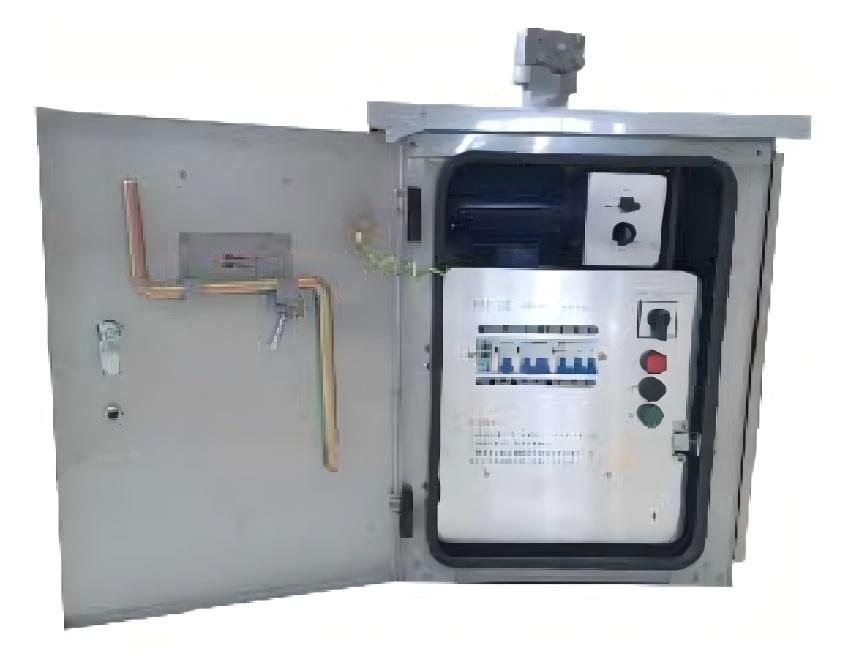

The electromotor operation mechanism uses electromotor to pass the torque to the output shaft through double worm gear reduction gear, Electrical control, protection and signal transmission devices, manual operation and related fasteners are installed in the mechanism.
Specifications and Parameters:
| Type | CJ2 | SRCJ2 | SRCJ3 | SRCJ7 | SRCJ8 | SRCJ10 |
| Principal axis corner | 90°/180° | 180° | 135⁰ | 180⁰ | 180⁰ | 180⁰ |
| Electromotor power W | 200 | 370 | 550 | 600 | ||
| Electromotor voltage V | AC380、AC220、DC220、DC110 | |||||
| Control vollage V | AC380、AC220、DC220、DC110 | |||||
| Switching on/off time s | 7±1 | 16±1 | 12±1 | 12±1 | 16±1 | 24±2 |
Product Features:
The operation mechanism is the driven element and an important component of disconnect switch and earthing switch. Long-term operation and practice have proved that the performance of operation mechanism will influence the reliability of the operation of disconnect switch to great extent.
We offer the most advanced engineering design solutions and product technology solutions to global power customers, and continue to create value for the commercial success of global power customers.
